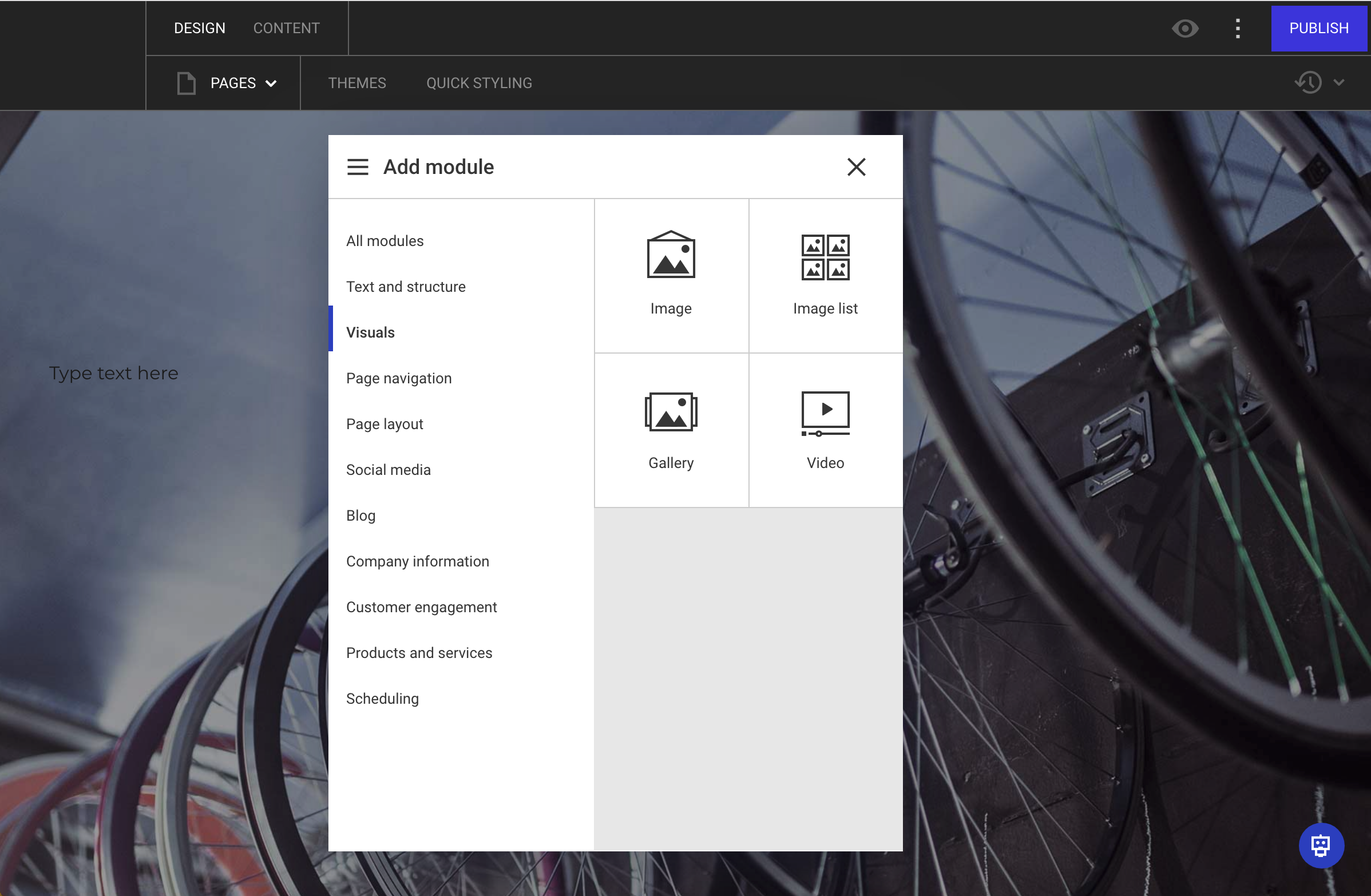

Use the Gallery module to show several images on your website with the option for visitors to open the images individually in an overlay when clicked. You can add a Gallery module by selecting Gallery under the category Visuals in the Add moduleoverlay.




To edit your Gallery module, hover the module and click on Content, Design or Settings on the dropdown.


Content

There are three ways of adding images to the module:

  • Upload new images: click on Add or drop file to add a file from your computer or drag and drop your image on the outlined area. You can add several images at once.
  • Use existing images from File Library: click on Select from File Library and choose existing images from the File Library. You can add several images at once.
  • Use images from Global Data: toggle the option Use Global Data source to select gallery images that you've previously uploaded in Global Data

  Change the order of your images

Rearrange the order of how your images appear by dragging on the six-dotted symbol on the individual images.

Once you've added images to the module, you have the option to add specific information to each image by clicking the arrow next to the file name:

  • Edit: When you've added your image, you have the option to edit it directly in the Editor. Click on Edit next to your image to open up the Image Editor.
  • Replace and remove: if you regret adding the image to your website you can either click Replace to add a different image or click Remove.
  • Alternative text: include an Alt text (alternative text) to help search engines "read" your images.
  • Caption text: the caption text becomes visible on your image when you enable hover effects with caption on your gallery.

  When using Global Data

If you're using Global Data as a source for your Gallery module, remember to add information to your images in the Gallery tab in Global Data where you have the exact same options as mentioned above.




Settings

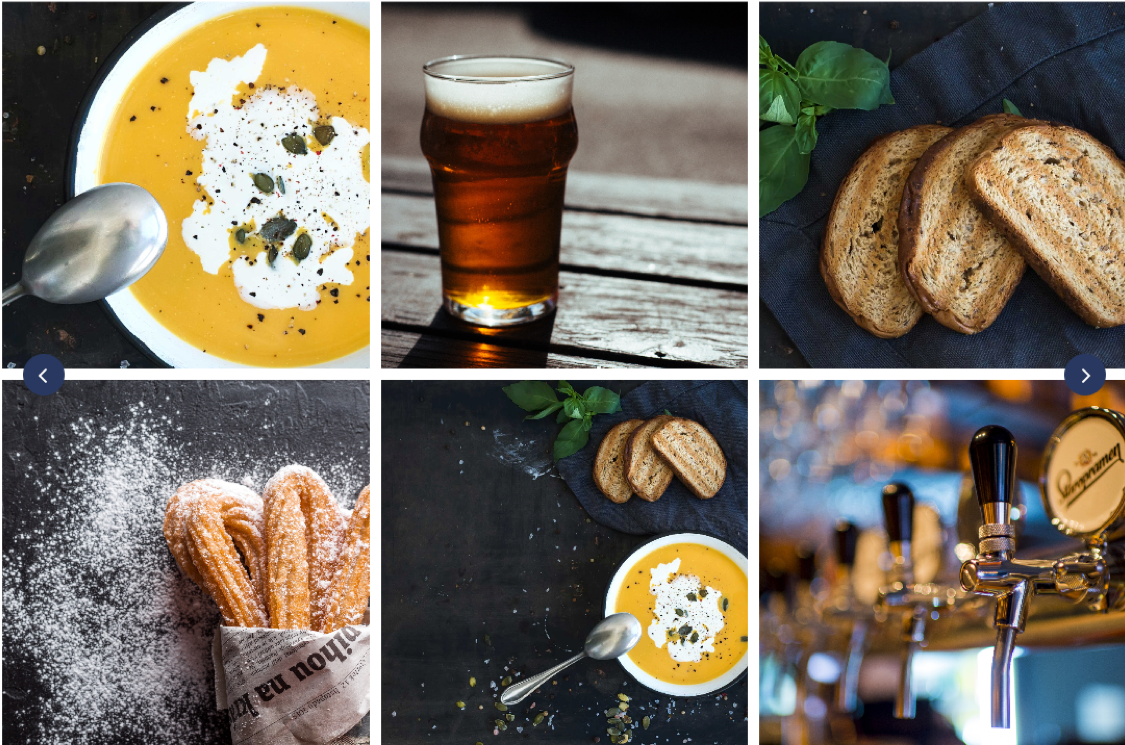

Here you can change the appearance of your gallery. Choose how many images you want to be visible at a time, the amount of columns (1-12) you want images to be divided into, and margin between your images. If Amount of images shown is set to 0, the module will display all your images.

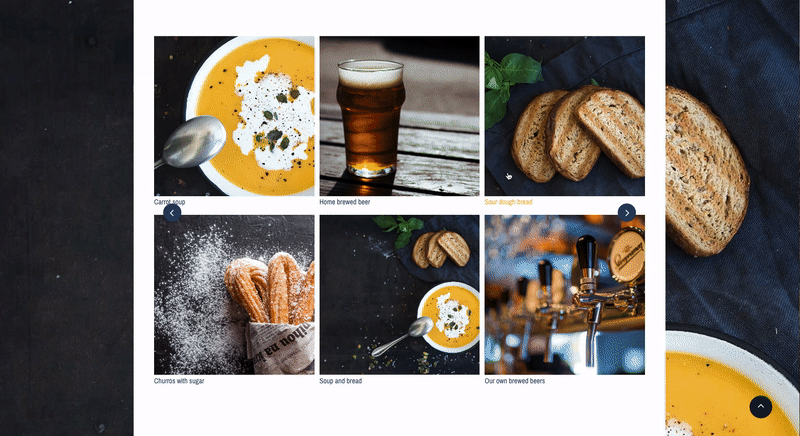

If you choose to not display all of your images in the list at the same time, the Editor automatically adds arrows on each side of the module so visitors can flip through the images. You can adjust the following transition settings:

  • Show arrow navigation: arrows are added on the sides of your gallery.
  • Show pagination dots: dots are added at the bottom of your gallery to help visitors navigate between images.
  • Auto change of slides: your images will automatically transition without the visitor clicking on the module.
  • Pause transition on hover: the auto change of slides will pause when a visitor hovers the gallery.



Transition Types

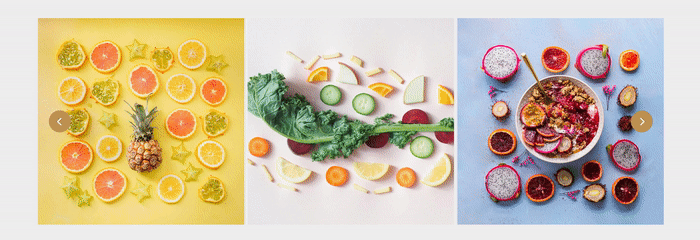

Choose how you want your Gallery to change images with the Slide transition type setting available on both of the modules. You have three different options: sliding, slow fade and fast fade.

Sliding




Slow fade




Fast fade


The time between transitions is by default 5000 milliseconds (5 seconds). Change the interval to a higher value if you want the images to be visible for a longer time and a lower value if you want the images to slide faster. Remember to input the value in milliseconds (1000 milliseconds = 1 second).

Note that the transitions on the images in the examples above are set to 2000 milliseconds (2 seconds).



Thumbnails

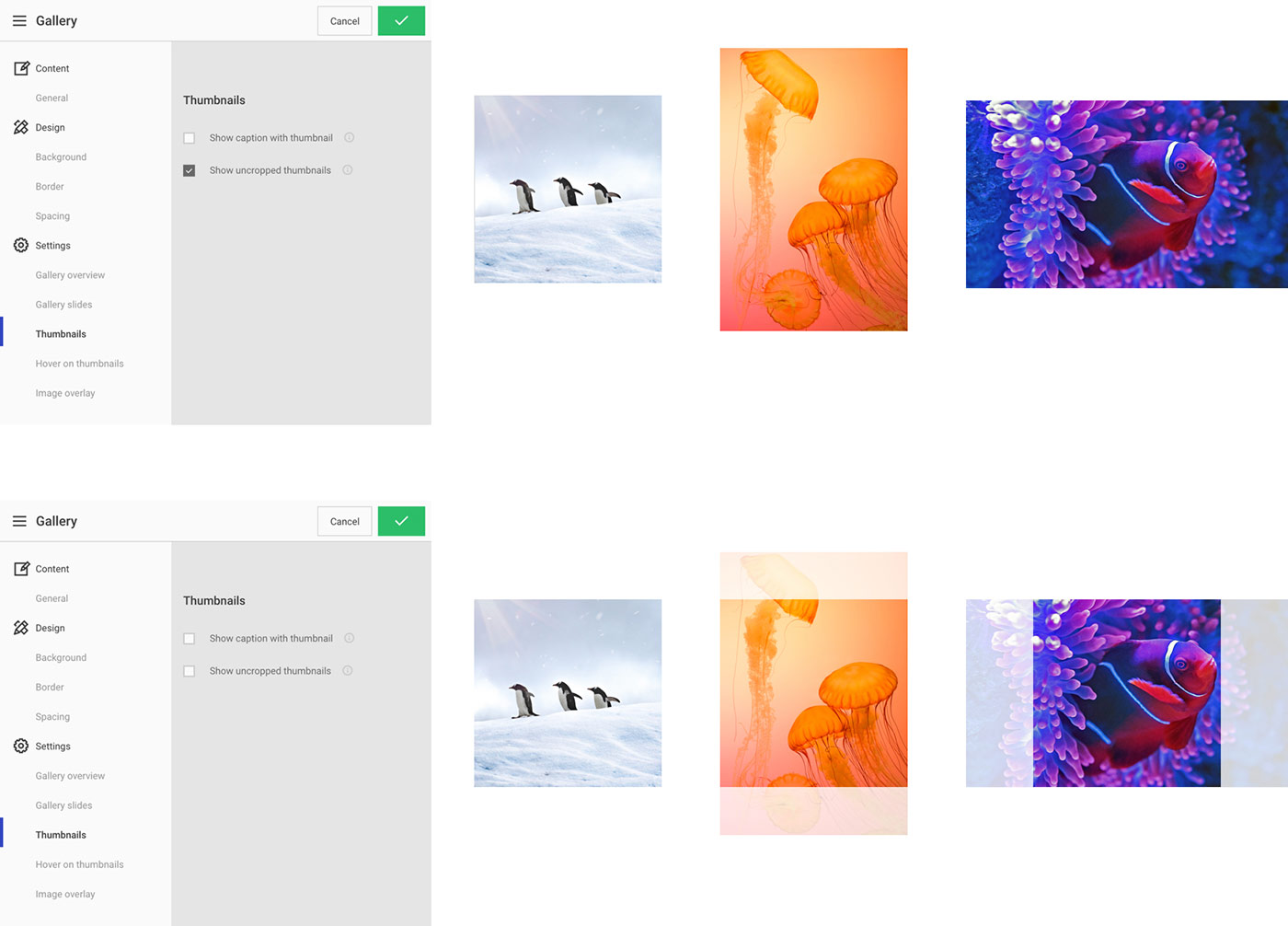

Cropped or uncropped thumbnails: You have the option to choose whether you want your images to be cropped or uncropped thumbnails. See the example below for a visual comparison of the two settings.




Tick the box Show caption with thumbnail if you want to display the caption text below your images. You also have the opportunity to add the same caption on the image overlay, just remember to tick Show caption in overlay as well.


In the Settings section you can also add hover effects on your images. You can either use the hover effect as a purely graphical feature or to display the image caption text on top of the image.

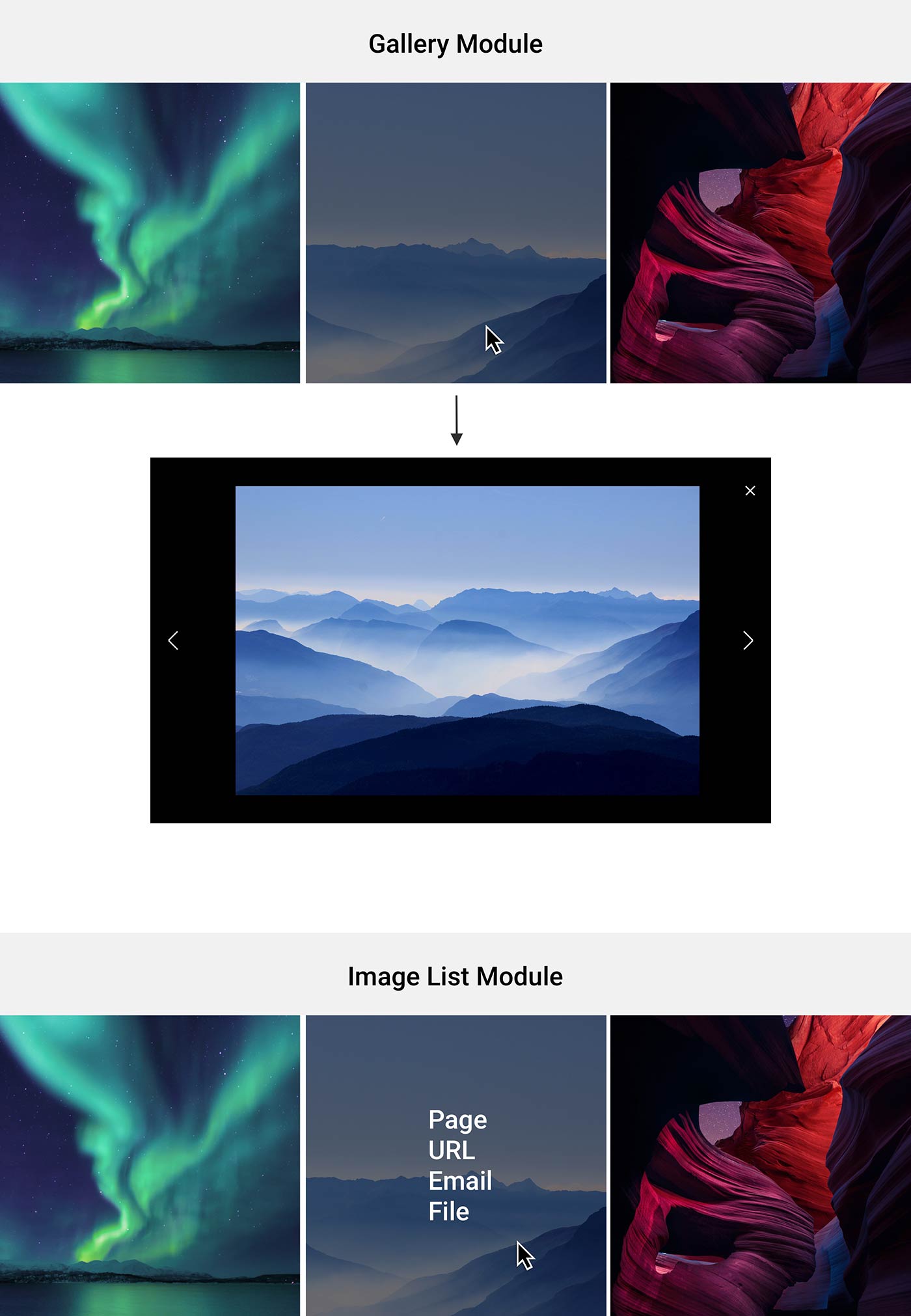

Difference: Image List vs Gallery

The Gallery and Image List modules look very similar when you add them to your website. The difference between the two modules lies in the behavior when a visitor clicks the images. When using the Gallery module to display images, an image will enlarge and be shown in an overlay when clicked. Clicking an image from the Image List module, the visitor will be directed to another page/website/email/file if you have added a link to the image (if no link has been added, nothing happens when the image is clicked).



The two modules also differ in terms of image sources. The Gallery module can fetch images from the Gallery content in Global Data whereas the Image List module cannot be set up to fetch Global Data content.
